PTL 1000
Power Tail Lift
DESCRIPTION
Rear installed cantilever lift with 4 cylinders. The use of high resistance steel allows a load capacity of 800 kg and very light weight of the frame. Normally applied to light and medium range vehicles is ideal for local distribution and daily use. Quickness in loading and unloading operation is guaranteed.
SPECIFICATIONS
- Automatic tilting on the ground.
- Double effect tilting cylinders.
- Single effect lifting cylinders.

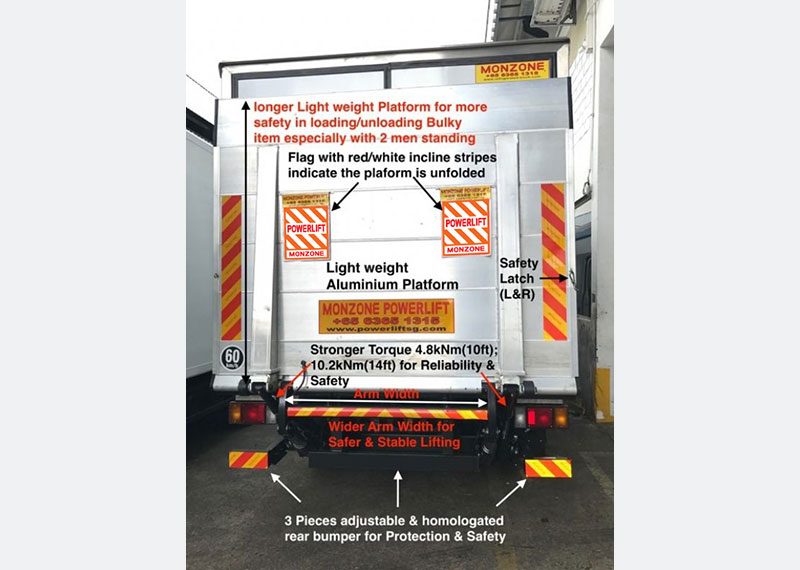

- 3 pieces adjustable and homologated rear bumper.

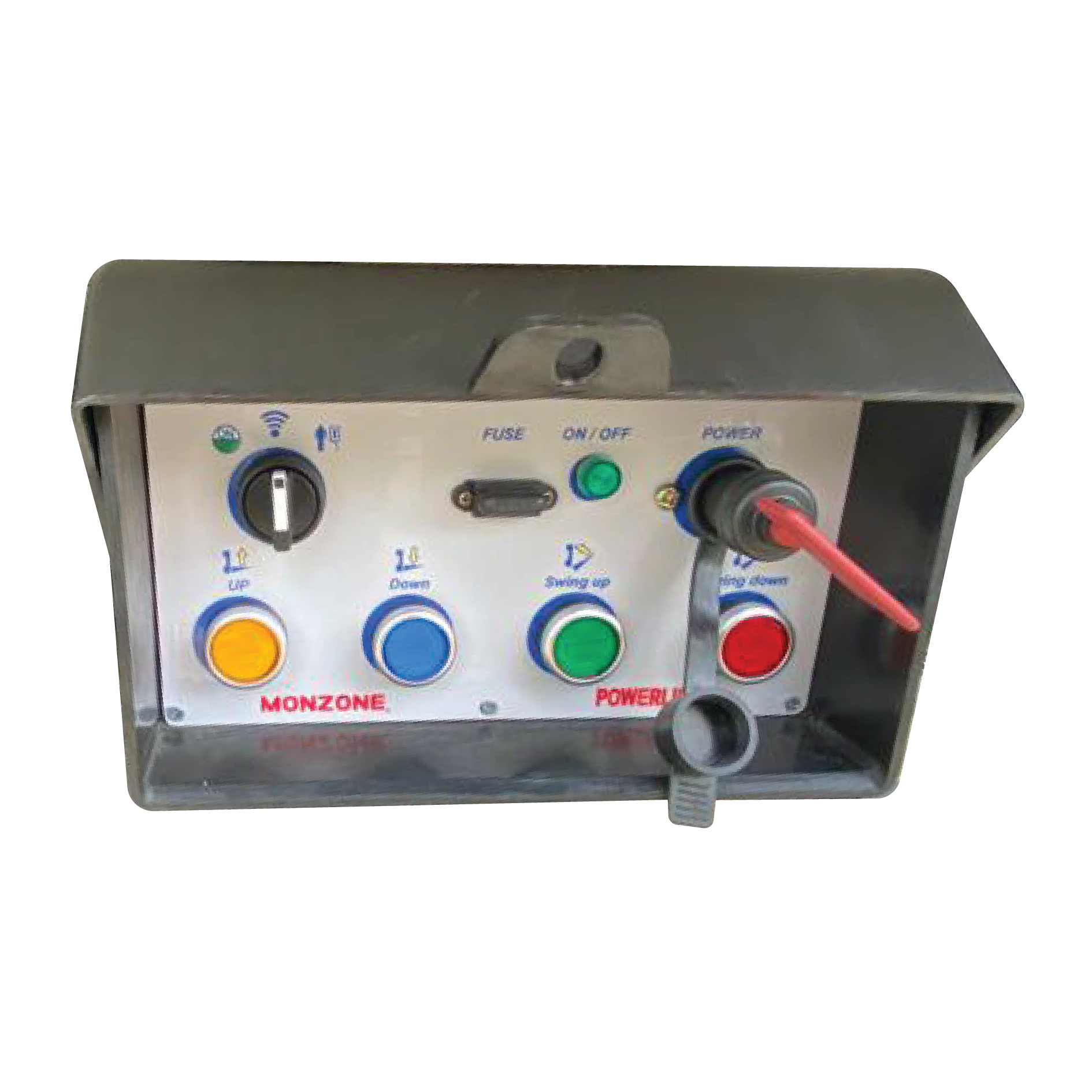

- Compact control box.
- Compact power pack.
- Quick fitting without weldings.
Available also in the version with folded platform for installation on tray bodies and in the version for installation on omega chassis.
